Mobile screening plant TERRA SELECT T 60


A high throughput screening machine with many Innovative detail features.

  • Mobile screening plant with a high throughput of up to 200 m³ per hour
  • Swivelling draw hitch
  • Drive unit allows connection to a star screen panel or windsifter
  • Optional fine grain conveyor belt, greater than 8 m in length (unique distinguishing feature)
  • Positive-locking drive with automatic stop and start function

High throughput and many innovative solutions in detail are the hallmarks of the T60 model. At the same time, the powerful engine works with fuel economy and high energy efficiency. The unit has sufficient power reserves to drive optional equipment such as screen surfaces with gears or an air separator. In addition, the folding hit section makes it easier for maintenance personnel to maneuver the unit on a daily basis.

The T 60 mobile trommel screen achieves impressive throughput rates. With a drum length of 5,500 mm and a drum diameter of 2,200 mm, screening capacities of up to 200 m³ per hour are possible.

Powerful drive – also electric or hybrid

In choosing the TERRA SELECT T 60 you will have a true powerhouse! The powerful industrial diesel engine of the mobile screening plant is energy efficient and saves fuel. The unit also has reserves of power that ensure the reliable operation of additional equipment such as star screen panels or windsifters. A purely electric drive is available as an option with the trommel screen for low-emission use in treatment or composting halls. Maximum flexibility is also achieved with the optional hybrid drive.

Extensive standard equipment, expandable with further customer-specific extras

The T 60 mobile screening plant has a wide range of special features that make everyday tasks much easier. The swivelling draw hitch, for example, allows the operator to manoeuvre the machine without great effort or trouble. Furthermore, the feed conveyor of the mobile screen has a positive-locking drive, which automatically starts or stops depending on the amount of material in the drum. This effectively avoids overloading the drum.

The well thought out engineering design of TERRA SELECT mobile screening plants ensures a long service life. In addition, the high level of standard equipment can be extended by a wide range of specific customer add-ons.

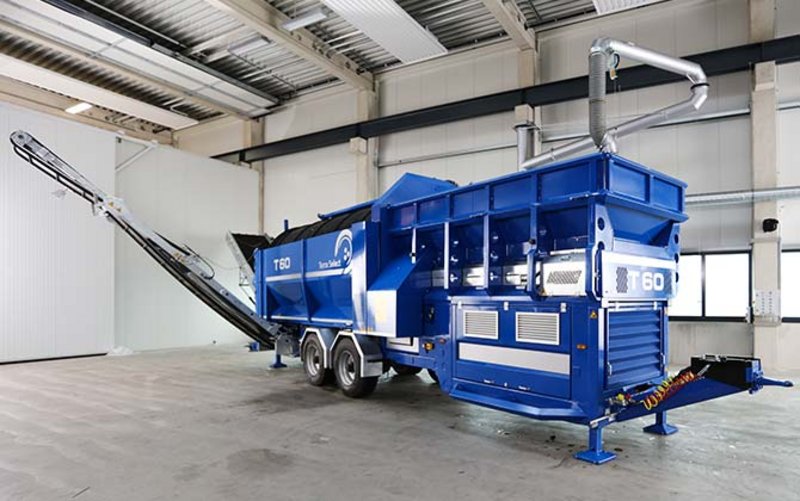

The optional extra-long fine grain belt, for example, is a unique distinguishing feature that will improve your working procedures. With a length of 8,060 mm, the fine grain belt increases the bulk cone formation by up to 80% compared to conventional fine grain belt lengths. In addition, the screened fine fraction is spaced at a greater distance from the machine, and makes manoeuvring with a wheeled loader a relatively simple task.

Further optional extras for the T 60 trommel screeninclude the magnetic roller for separating magnetic metals or the radio remote control for more comfortable operation of the machine.

So, when selecting your screening machine, why not decide on the choice of professionals and join the list of many satisfied Eggersmann customers!
